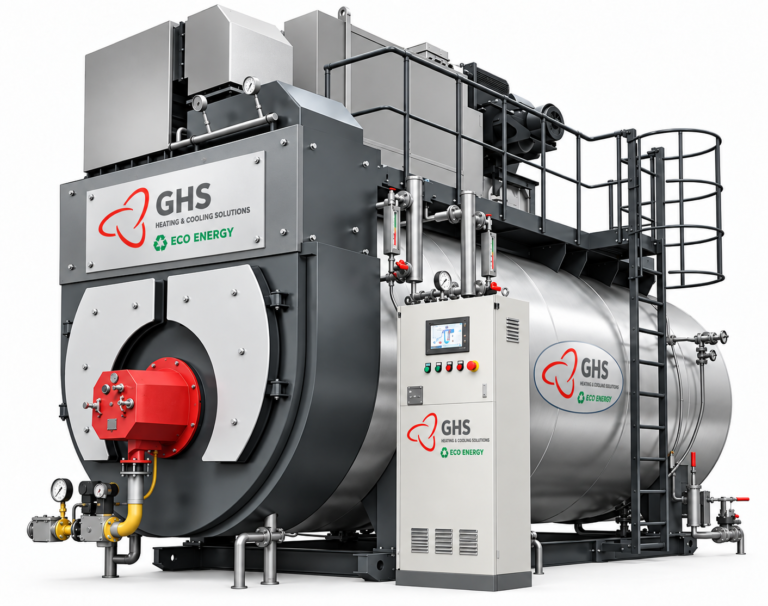

Fire Tube Gas Oil Condensing Steam Boiler
High Efficiency Condensate Recovery Gas Steam Boiler
Steam Capacity Range:
2-30 ton/hour, 100-2100BHP
Fuel Options:
Natural Gas, LPG, Dual Fuel, Propane
Steam Pressure:
1.0MPA-2.5MPA
Manufacture Standard:
ASME、GB、CE-PED、ISO、EAC、DOSH、AS、MOM、NR13
Key Features:
- Integrated economizer, condenser, air preheater, minimize footprint.
- VFD control for water feeding & combustion, save electricity 30%.
- Boiler efficiency up to 103%, lowest fuel cost.
- No refractory smoke box, lifetime maintenance free.
- Oval track shape reversal chamber, steam dryness 99%.
- Craftsmanship quality, burner lifetime warranty.
Application:
- Food processing, beverage, textile, paper-making, pharmaceutical, chemical, building material, hospital, hotel, laundry etc.
Parameters
| Model | Rated steam output(TPH) | Rated working pressure(MPA) | Rated Steam Temperature(°C) | Heat Efficiency(%) | Nox Emission(mg/m³) | Transportation Weight(ton) | Overall Dimension(mm) |
|---|---|---|---|---|---|---|---|
| WNS2-1.25-Y(Q) | 2 | 1.25 | 194 | ≥96 | ≤80/30 | 8.2 | 4960*2140*2340 |
| WNS3-1.25-Y(Q) | 3 | 1.25 | 194 | ≥96 | ≤80/30 | 9.8 | 5280*2240*2380 |
| WNS4-1.25-Y(Q) | 4 | 1.25 | 194 | ≥96 | ≤80/30 | 12.9 | 5720*2440*2570 |
| WNS5-1.25-Y(Q) | 5 | 1.25 | 194 | ≥96 | ≤80/30 | 16.6 | 6200*2700*3900 |
| WNS6-1.25-Y(Q) | 6 | 1.25 | 194 | ≥96 | ≤80/30 | 17.2 | 6690*2630*2660 |
| WNS8-1.25-Y(Q) | 8 | 1.25 | 194 | ≥96 | ≤80/30 | 21.5 | 6800*2800*3050 |
| WNS10-1.25-Y(Q) | 10 | 1.25 | 194 | ≥96 | ≤80/30 | 27.5 | 7250*2900*3250 |
| WNS12-1.25-Y(Q) | 12 | 1.25 | 194 | ≥96 | ≤80/30 | 30.3 | 7750*3100*3500 |
| WNS15-1.25-Y(Q) | 15 | 1.25 | 194 | ≥96 | ≤80/30 | 37.5 | 8000*3300*3700 |
| WNS20-1.25-Y(Q) | 20 | 1.25 | 194 | ≥96 | ≤80/30 | 49.3 | 9050*3500*4050 |
Industrial Gas Diesel Fired Hot Water Boiler
Industrial Gas Diesel Fired Hot Water Boiler
Thermal Power Range:
0.7 ~ 17.5MW/h
Design:
3 Pass / 4 Pass, Dry back / Wet Back
Fuel Options:
Natural Gas, LPG, LNG, Biogas, Diesel, Heavy Oil, Dual Fuel, Propane, #2 Fuel Oil
Hot Water Temperature Outlet/Inlet:
95/70℃, 115/70℃, 130/70℃
Manufacture Standard:
ASME、GB、CE-PED、ISO、EAC、DOSH、AS、MOM、NR13
Key Features:
- Highly Integrated design, minimize boiler footprint.
- 4-stage energy-saving, economizer, condenser, air preheater and air cooled smoke box.
- Both combustion & water feeding VFD control, save electricity 30%.
- Split-type burner with VFD fan, burnout rate 99.99%, lowest fuel cost.
- Bottom water return design and backwater circulation technology.
Application:
- Industrial production, Central heating, Hotel, swimming pool, etc.
Parameters
| Model | Rated thermal power(MW/H) | Rated Outlet water pressure(MPA) | Rated Outlet/Inlet Water Temperature(°C) | Heat Efficiency(%) | Nox Emission(mg/m³) | Transportation Weight(ton) | Transportation Dimension(mm) |
|---|---|---|---|---|---|---|---|
| NWNS0.7- 1.0/95/70-Q | 0.7 | 1.0 | 95/70 | ≥97 | ≤80/30 | 5.5 | 3550*2200*3100 |
| NWNS1.4- 1.0/95/70-Q | 1.4 | 1.0 | 95/70 | ≥97 | ≤80/30 | 7.3 | 4450*2350*3200 |
| NWNS2.1- 1.0/95/70-Q | 2.1 | 1.0 | 95/70 | ≥97 | ≤80/30 | 9.5 | 5000*2450*3300 |
| NWNS2.8- 1.0/95/70-Q | 2.8 | 1.0 | 95/70 | ≥97 | ≤80/30 | 12.8 | 5400*2550*3400 |
| NWNS3.5- 1.0/95/70-Q | 3.5 | 1.0 | 95/70 | ≥97 | ≤80/30 | 13.9 | 5950*2750*3500 |
| NWNS4.2- 1.0/95/70-Q | 4.2 | 1.0 | 95/70 | ≥97 | ≤80/30 | 14.9 | 6000*2850*3600 |
| NWNS5.6- 1.0/95/70-Q | 5.6 | 1.0 | 95/70 | ≥97 | ≤80/30 | 19.5 | 6600*3050*3800 |
GHS Series Bi-drum Water Tube Gas Oil Fired Steam Boiler
SZS Series Bi-drum Water Tube Gas Oil Fired Steam Boiler
Steam Capacity Range:
6-50 ton/hour, 6-50tph
Fuel Options:
Natural Gas, LPG, Biogas, Diesel, Heavy Oil, Dual Fuel, Propane, Hydrogen, Industrial Waste Gas etc.
Steam Pressure:
1.25-3.82MPa
Superheated Steam Temperature:
≤450°C
Manufacture Standard:
ASME、GB、CE-PED、ISO、EAC、DOSH、AS、MOM、NR13
Key Features:
- Full membrane water-cooled wall structure with excellent sealing performance. High efficiency ≥98%.
- Optimized water circulation design, ensures stable water level, high steam quality, steam dryness of ≥99%;
- Split-type frequency conversion proportional control burner, combustion efficiency of 99.9%;
- High-quality insulation materials and advanced shell sealing technology, minimal heat loss and suitability for outdoor installation;
- Optimized flue gas flow design, compact structure, small footprint and rational layout.
Parameters
| Model | Rated steam output(TPH) | Rated working pressure(MPA) | Rated Steam Temperature(°C) | Heat Efficiency(%) | Flue gas temperature(°C) | Transport Weight(ton) | Transport Dimension(mm) |
|---|---|---|---|---|---|---|---|
| GHS6 | 6 | 1.25-3.82 | 194/204/226 | ≥98 | ≤65 | 19 | 6400×2800×3500 |
| GHS8 | 8 | 1.25-3.82 | 194/204/226 | ≥98 | ≤65 | 25 | 7500×3000×3500 |
| GHS10 | 10 | 1.25-3.82 | 194/204/226 | ≥98 | ≤65 | 30 | 8500×3100×3400 |
| GHS15 | 15 | 1.25-3.82 | 194/204/226 | ≥98 | ≤65 | 38 | 9500×3800×3600 |
| GHS20 | 20 | 1.25-3.82 | 194/204/226 | ≥98 | ≤65 | 46 | 11000×3800×4000 |
| GHS25 | 25 | 1.25-3.82 | 194/204/226 | ≥98 | ≤65 | 50 | 11000×4000×4000 |
| GHS30 | 30 | 1.25-3.82 | 194/204/226 | ≥98 | ≤65 | 60 | 12000×4200×4000 |
| GHS35 | 35 | 1.25-3.82 | 194/204/226 | ≥98 | ≤65 | 65 | 12600×4400×4000 |
| GHS40 | 40 | 1.25-3.82 | 194/204/226 | ≥98 | ≤65 | 75 | 13000×4600×4200 |
| GHS45 | 45 | 1.25-3.82 | 194/204/226 | ≥98 | ≤65 | 85 | 13500×4800×4200 |
GHS Series Electric Heating Pressure Hot Water Boiler
GHS Series Electric Heating Pressure Hot Water Boiler
Steam Capacity Range:
0.05–0.125 t/h · 0.7 MPa
Vertical Gas Diesel Fired Steam Boiler for Food Processing
Vertical Gas Diesel Fired Steam Boiler for Food Processing
Steam Capacity Range:
0.5-10 ton/hour, 30-750BHP
Fuel Options:
Natural Gas, LPG, LNG, Biogas, Diesel, Heavy Oil, Dual Fuel, Propane, #2 Fuel Oil
Steam Pressure:
1.0MPA-9.8MPA
Manufacture Standard:
ASME、GB、CE-PED、ISO、EAC、DOSH、AS、MOM、NR13
Key Features:
- Fast steam generation within 2-3 minutes.
- External steam-water separator, steam dryness > 99%
- Vertical integrated structure, Minimum boiler room space
- Coil pipe structure, wide pressure range up to 9.8Mpa
- Condensing type, 5% higher efficiency than one-though boiler, save fuel cost
Parameters
| Model | Rated steam output(TPH) | Rated working pressure(MPA) | Rated Steam Temperature(°C) | Heat Efficiency(%) | Nox Emission(mg/m³) | Transportation Weight(ton) | Overall Dimension(mm) |
|---|---|---|---|---|---|---|---|
| GHS0.5-0.8-Y(Q) | 0.5 | 0.8 | 175 | ≥101 | ≤80 or ≤30 | 1.4 | 2100*1500*2200 |
| GHS1-1.25-Y(Q) | 1 | 1.25 | 194 | ≥101 | ≤80 or ≤30 | 2.6 | 2500*1700*2800 |
| GHS1.5-1.25- Y(Q) | 1.5 | 1.25 | 194 | ≥101 | ≤80 or ≤30 | 3.5 | 2800*1900*3000 |
| GHS2-1.25-Y(Q) | 2 | 1.25 | 194 | ≥101 | ≤80 or ≤30 | 4.8 | 3400*2200*3300 |
| GHS3-1.25-Y(Q) | 3 | 1.25 | 194 | ≥101 | ≤80 or ≤30 | 6.5 | 3600*2400*3500 |
| GHS4-1.25-Y(Q) | 4 | 1.25 | 194 | ≥101 | ≤80 or ≤30 | 8.7 | 3800*2500*3600 |
| GHS5-1.25-Y(Q) | 5 | 1.25 | 194 | ≥101 | ≤80 or ≤30 | 10.4 | 4000*2700*3800 |
| GHS6-1.25-Y(Q) | 6 | 1.25 | 194 | ≥101 | ≤80 or ≤30 | 11.3 | 4000*2700*3800 |
| GHS8-1.25-Y(Q) | 8 | 1.25 | 194 | ≥101 | ≤80 or ≤30 | 14.5 | 4300*30000*4100 |
| GHS10-1.25-Y(Q) | 10 | 1.25 | 194 | ≥101 | ≤80 or ≤30 | 18.2 | 4600*3000*4300 |
GHS Series Electric Heating Hot Water Boiler
GHS Series Electric Heating Water Boiler
Steam Capacity Range:
0.03-0.65MW Atmospheric Pressur
